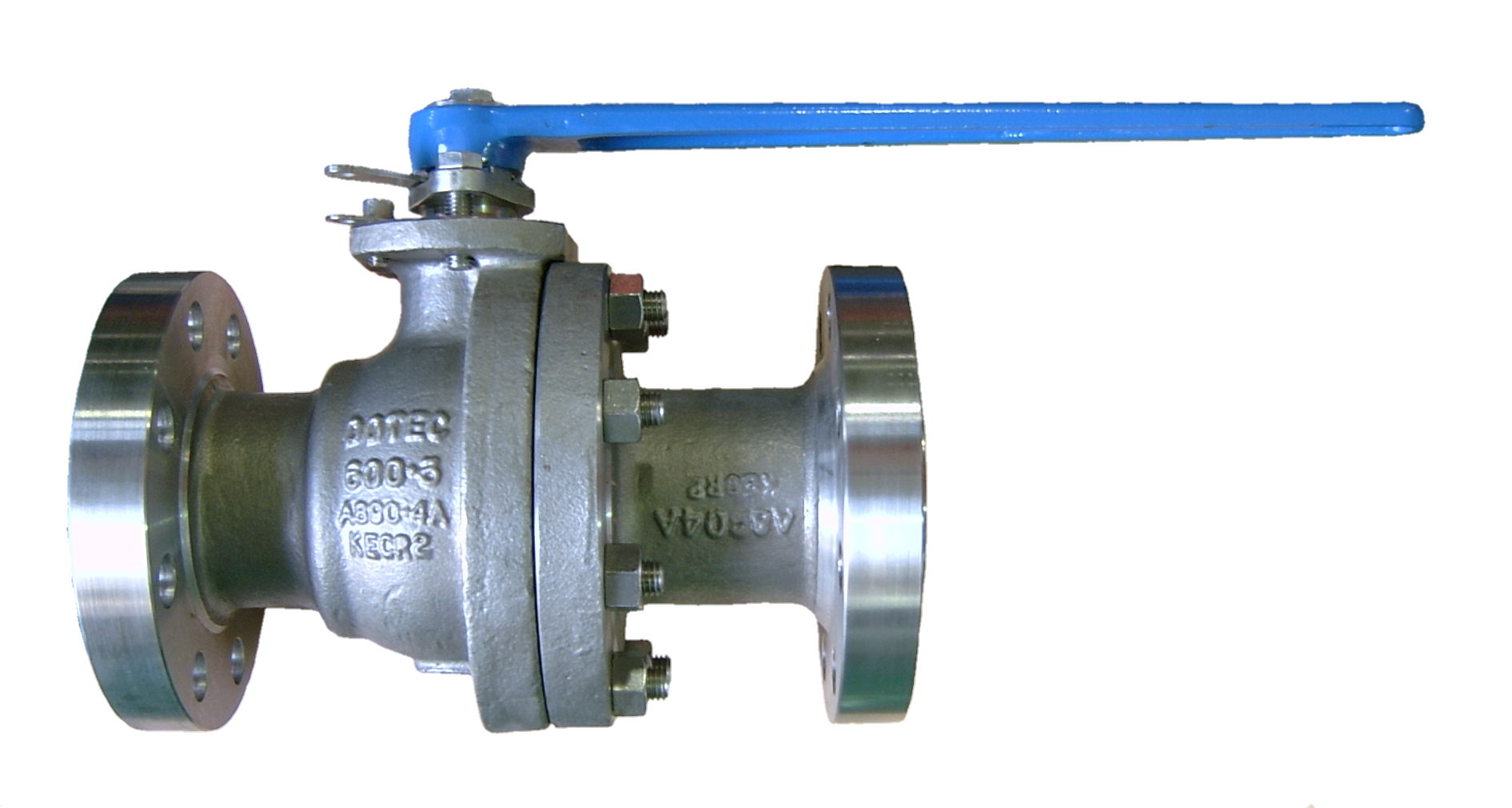

A-2. Floating Ball Valves

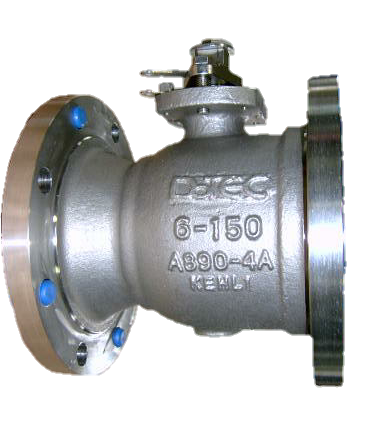

A-3. Floating Ball Valves (Uni-Body)

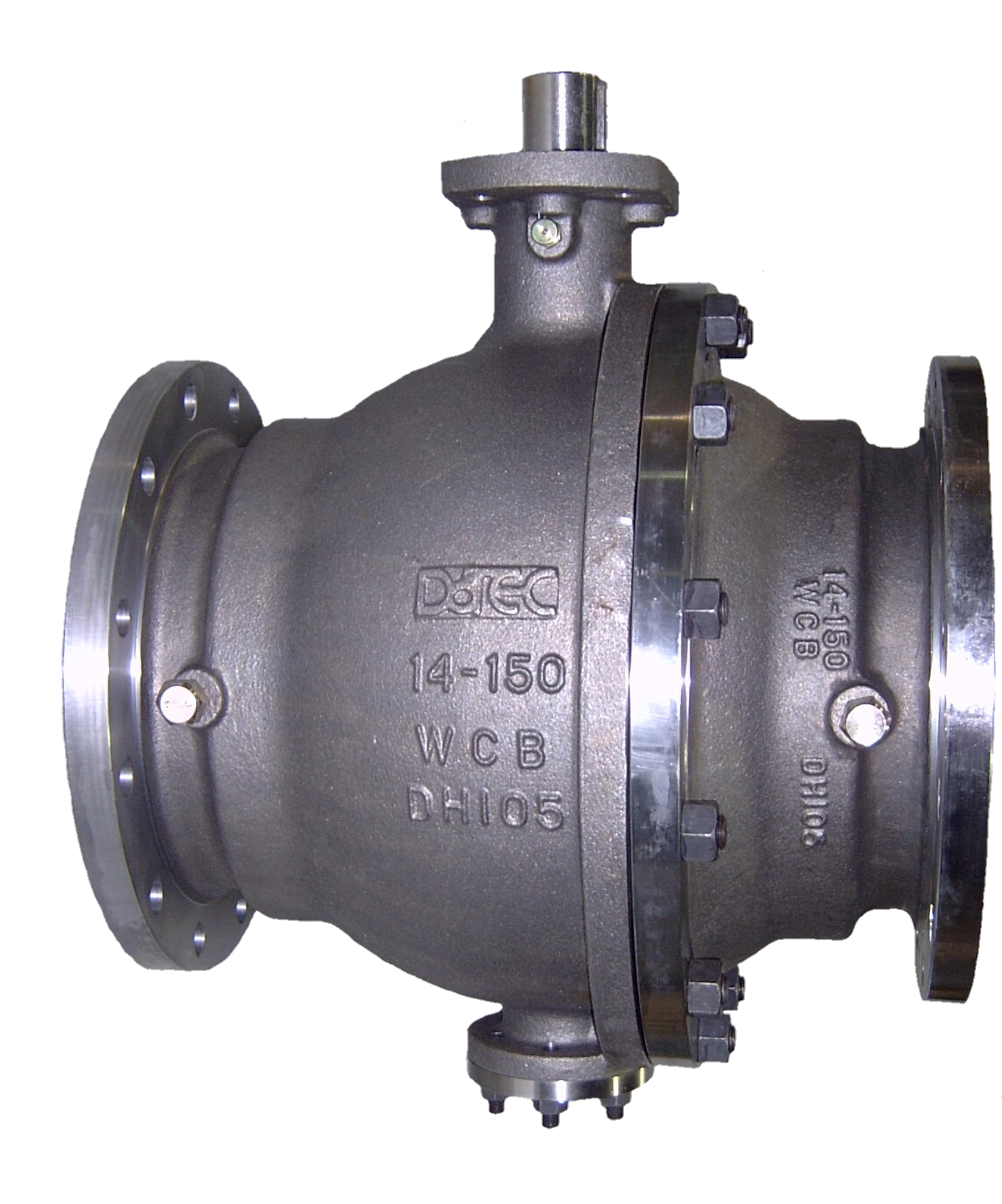

A-4. Trunnion Ball Valves-2Pcs
A-5. Trunnion Ball Valves-3Pcs

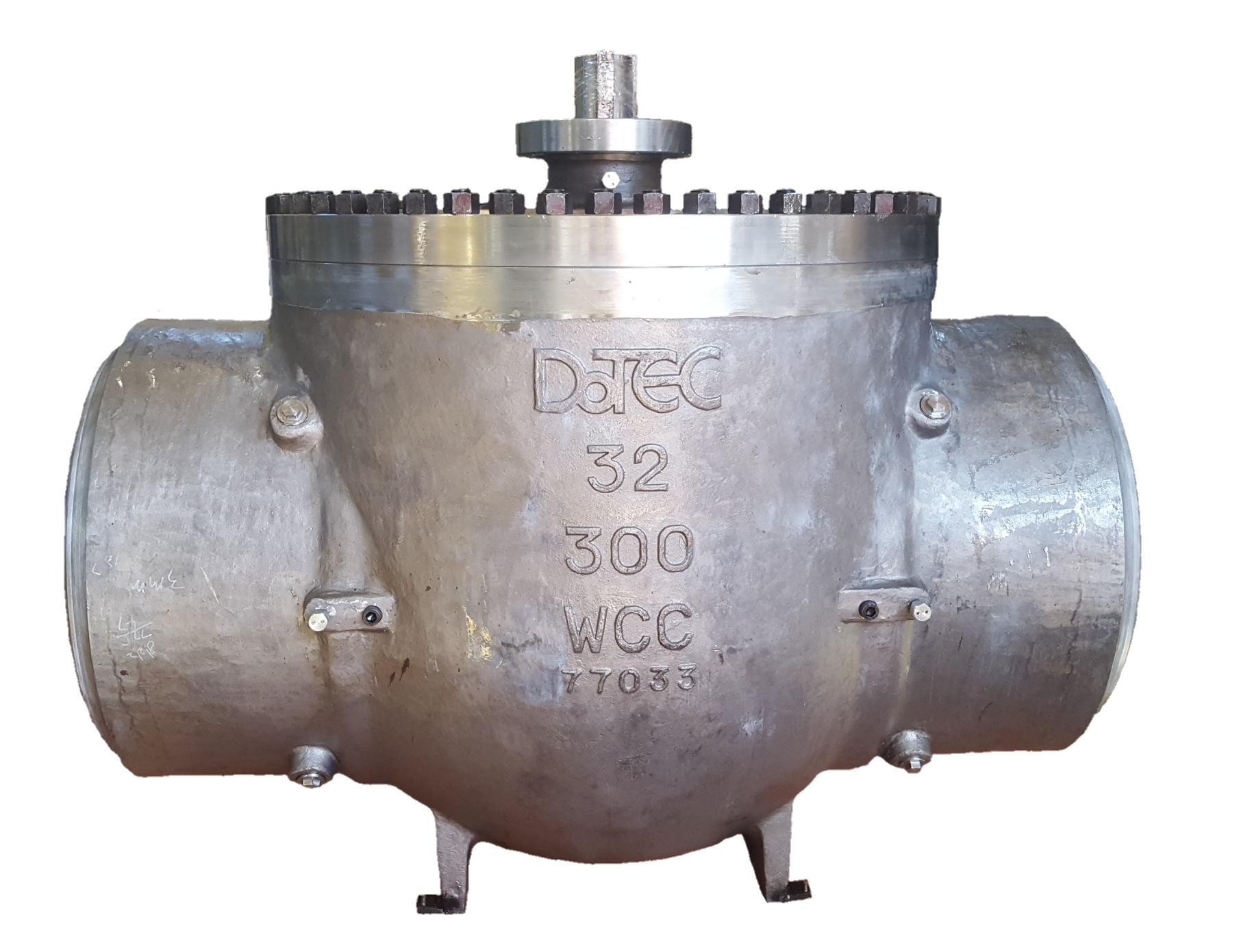

A-6. Top-Entry Ball Valves
A-7. 3-way Ball Valves

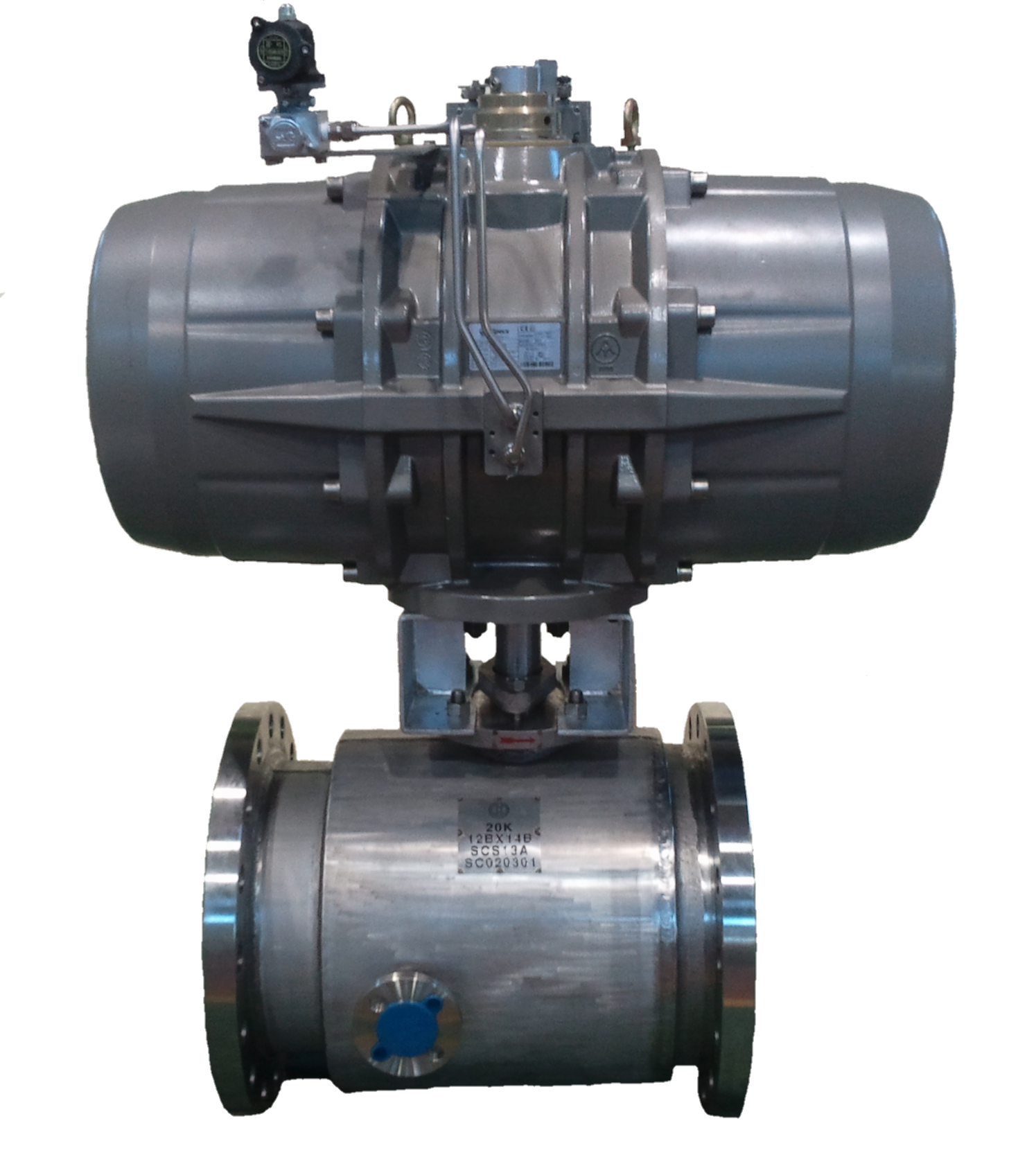

A-8. Jacketed Ball Valves
B. Metal seat ball valves
B-1. Floating Metal Seat Ball Valves
B-2. Trunnion Metal Seat Ball Valves-2Pcs
B-3. Trunnion Metal Seat Ball Valves-3Pcs
B-4. Top-Entry Metal Seat Ball Valves
C. Cryogenic Ball Valves
C-1. Floating Ball Valves
C-2. Trunnion Ball Valves
C-3. Top Entry Ball Valves
D. Gate Valves
D-1. Gate Valve-Bolted Bonnet
D-2. Gate Valve-Pressure seal Bonnet
E. Globe Valves
E-1. Globe valves-Bolted Bonnet
E-2. Globe Valve-Pressure Seal Bonnet
F. Check Valves
F-1. Swing Check Valve-Bolted Bonnet
F-2. Swing Check Valve - Pressure Seal Bonnet
F-3. Dual Check Valves
G. Butterfly Valves
G-1. High Performance Butterfly Valves
G-2. Triple Offset butterfly valves
H. Special Products
H-1. API 6A Ball Valve

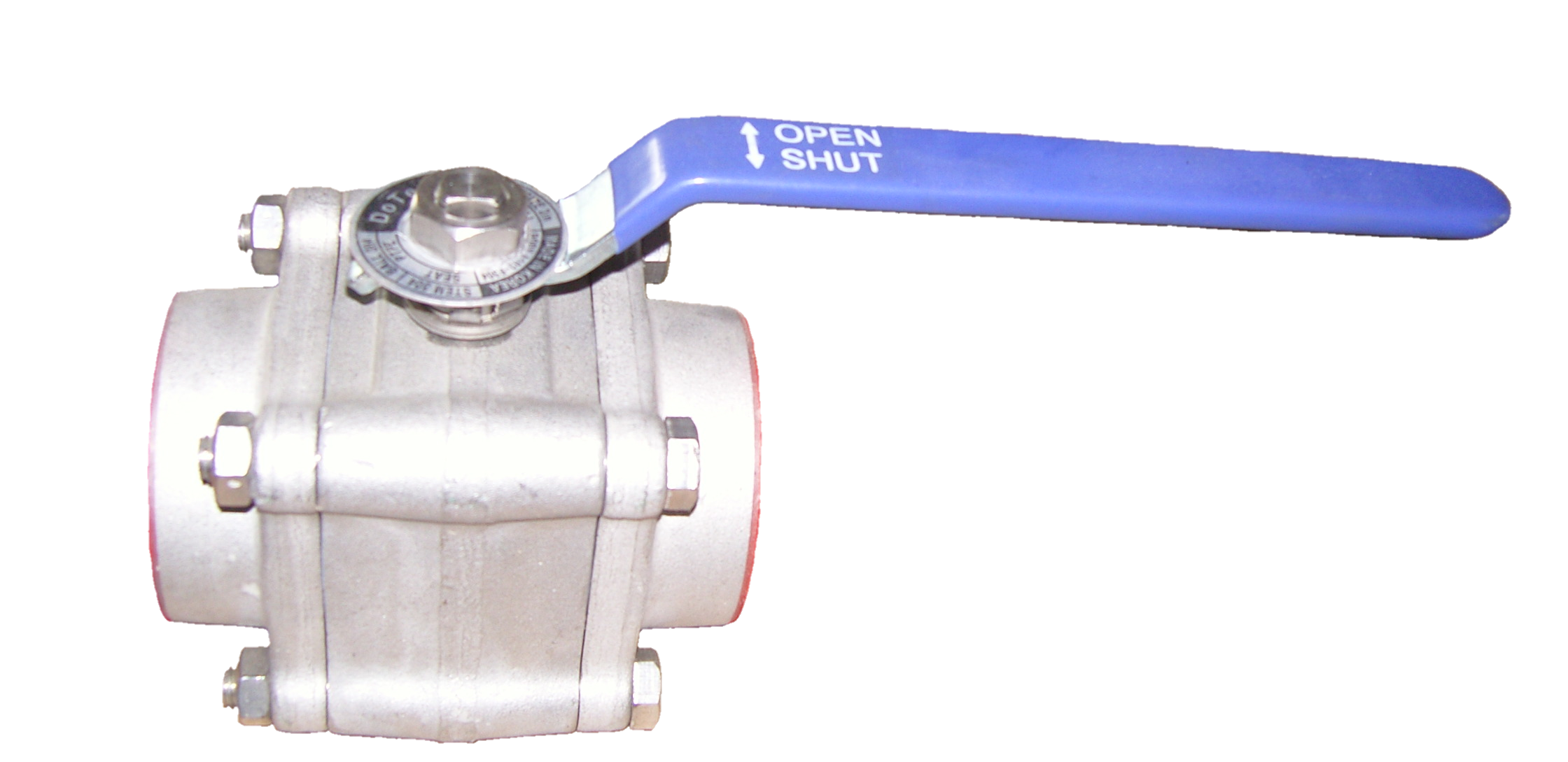

Forged Steel Ball Valves
MODEL NO: BEH
Floating Ball
Full Bore
Fire safe Design
Locking Device
Anti-static Device
Blow-proof stem
Cavity Relief Seat
Double 'D' design
| Wall Thickness | ASME/ANSI B16.34 & EN ISO 17292 |
| Bore Size | API 602 |
| Face to Face | Maker Standard |
| End Flange | ASME/ANSI B16.5 & ANSI B16.11 |
| Testing | ANSI B16.104 |
| Class |
|---|
| FB, RB 600lb |
| FB, RB 300lb |
| Size |
|---|
| 1/2" - 2" |
| 1/2" - 2" |
| Body Material |
|---|
Cast Carbon Steel Cast Stainless Steel Duplex Stainless Steel |
